Wago Lever-Nut

yotpo

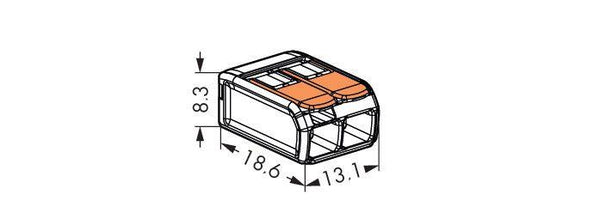

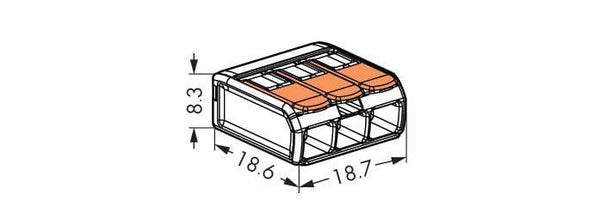

The wire nut has been reinvented and takes form in the lever-nut! This genius device is going to save you the struggle of using old fashioned wire nuts and electrical tape to make your connections. The 2-, 3- and 5-wire connectors accommodate solid and stranded wires from 0.14 to 4 mm2 (24–12 AWG). This wide range allows you to connect different types of wires and enables bridging of wires with greatly differing cross sections. The slim and compact design allows the lever-nuts to fit in ceiling canopies, junction boxes and other tight spaces. The Wago lever-nut places focus on easy, convenient handling. The proven CAGE CLAMP® technology not only guarantees installation without having to use tools, but also permanently safe and reliable contacting. For this you can easily open and close the clamping point using the operating levers, applying only a slight amount of force to open it.

Using the Wago Lever-Nut is as easy as 1, 2, 3.

  • Step 1: Strip insulation
    •  Strip the wire to 11 mm/0.43 in.
  • Step 2: Connect the wire
    • Open the clamping unit using the integrated lever and insert the wire.
  • Step 3: Close the clamp
    • Move the operating lever back to its resting position.

Technical Specifications:

  • UL listed
  • Max volts: 600v
  • Max current: 20A
  • Max temp: 105°C
  • Wire type: solid, stranded and flexible
  • Wire range: AWG 24—12, 0.2 – 4mm²

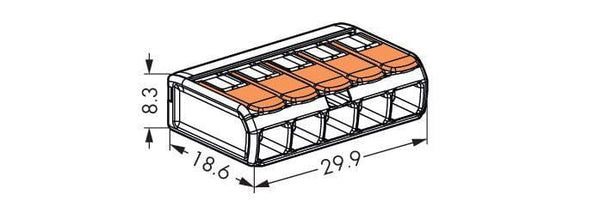

  • 5 connection splicing connector
  • 2 test slots front and rear
